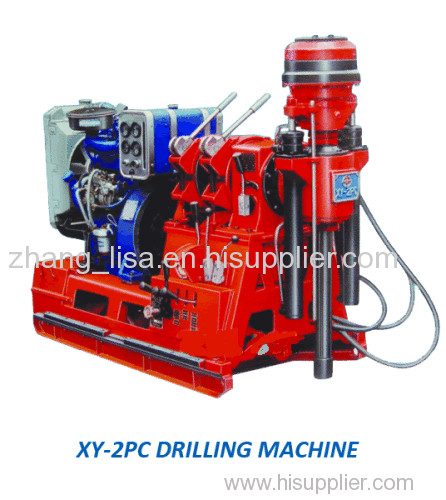

XY-2PC Soil Testing Drilling Rig For Construction
| Payment Terms: | T/T,L/C,D/A |
| Place of Origin: | Chongqing, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
It's used in tunnel drilling, geological prospecting, also suitable for geological drillings of building, hydroelectric power-station, highway,etc.
APPLICATIONS:
The drillrig is used in tunnel drilling, geological prospecting, also suitable for geological drillings of building, hydroelectric power-station, highway, roadway and harbor and drilling pile grouting hole.
FEATURES:
The drill has such features as small body, light weight; especially available for construction of hydroelectric power-station. It can get two series of speeds by means of substitution of one pair of helical gears for other one.
Technical Specifications
| Ф50 drill rod | 150 |
Ф43 Wire line drillrod | 300 | |
spindle speed (r/min) | Forward | 81;164;298;334;587;1190 |
reverse | 98;199 | |
Max torque(Nm) | 1110 | |
angle range | 0-90° | |
Max spindle pull force (KN) | 45 | |
spindle stroke | 500 | |
hoist max lift capacity (singlerope) (KN) | 20 | |
oil pump | CB32 gear oil pump | |
Power unit | diesel engine | 295D 13.2KW |
electric motor | YD180L-4/8 17/11KW | |
drill body weight(excluding power)(Kg) | 650 | |
overal dimensions(L×W×H)(mm) | 1720×800×1300 | |
